Chapter 17: Symbolic Mathematics with SymPy#
Topics Covered:
What symbolic math is and why it matters in ChE
Defining symbols and building expressions with SymPy
Simplification, expansion, and substitution
Symbolic calculus: differentiation, integration, and limits
Solving algebraic and differential equations

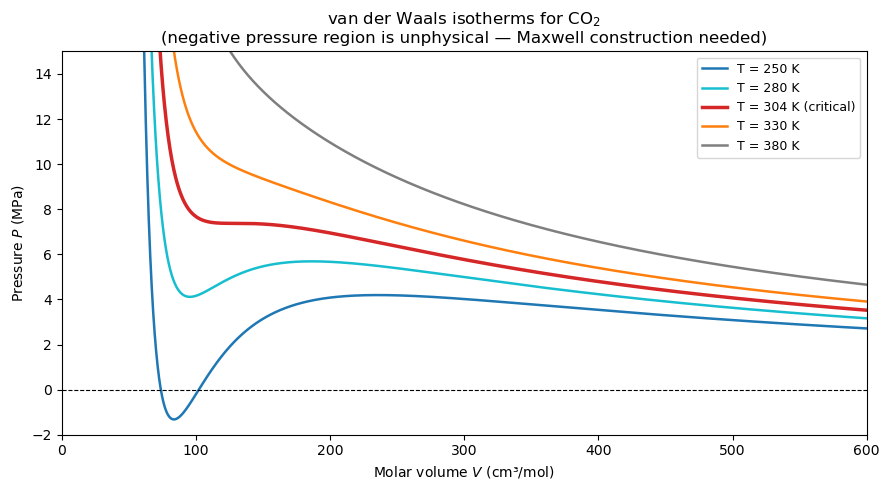

ChE application: van der Waals equation of state and Gibbs energy

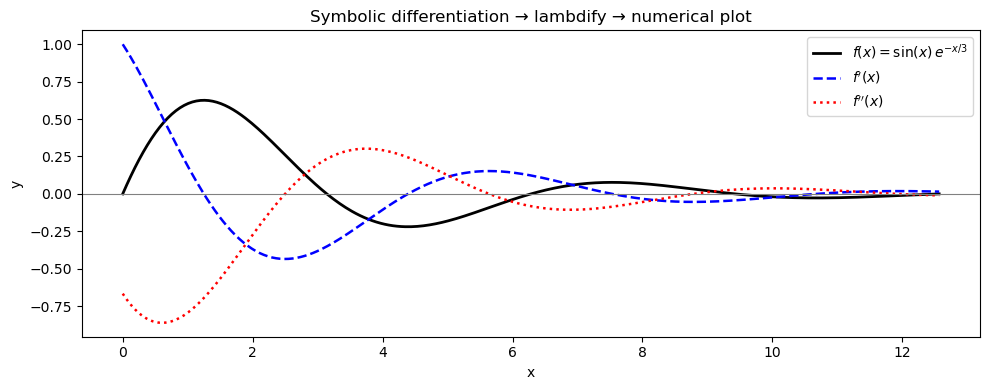

lambdify: converting symbolic expressions to fast numerical functions
# ── All imports ──────────────────────────────────────────────────────────────
import sympy as sp
import numpy as np
import matplotlib.pyplot as plt
sp.init_printing(use_unicode=True) # pretty-print in Jupyter
17.1 Motivation: Symbolic vs Numerical Math#
In previous chapters, NumPy worked with numbers — floating-point approximations computed at runtime. SymPy works with symbols — exact mathematical objects that follow algebraic rules.
NumPy (numerical) |
SymPy (symbolic) |
|
|---|---|---|
Stores |
Floating-point numbers |
Exact expressions |
|
|
\(\sqrt{2}\) (exact) |
Derivative of \(x^3\) |
Not directly |
\(3x^2\) (exact) |
Integral of \(e^x\) |
Numerical only |
\(e^x + C\) (exact) |
Best for |
Large arrays, speed |
Derivations, exact answers |
When do ChE engineers need symbolic math? (examples)
Deriving analytical expressions for \(\frac{dP}{dT}\) or \(\frac{dC_p}{dT}\) from an equation of state
Integrating \(C_p(T)\) exactly rather than numerically
Solving the van der Waals equation for molar volume
Finding steady-state solutions to ODEs before simulating them
Verifying that a numerical answer has the right units and limiting behavior
import sympy as sp
sp.init_printing(use_unicode=True) # pretty-print in Jupyter
17.2 Symbols, Expressions, and Basic Operations#
17.2.1 Defining Symbols#
Everything in SymPy starts with sp.symbols(). A symbol is a named mathematical variable — it carries no numeric value until you assign one.
Single and multiple symbols:
x = sp.symbols('x') # single symbol
x, y, z = sp.symbols('x y z') # multiple — space-separated string
x, y, z = sp.symbols('x, y, z') # commas also work
x = sp.symbols('x')
print(x)
print(type(x))
x
<class 'sympy.core.symbol.Symbol'>
Subscripts and Greek letters use LaTeX naming conventions:
x1, x2 = sp.symbols('x_1 x_2') # subscripts render as x₁, x₂
alpha, beta = sp.symbols('alpha beta') # Greek letters
T_inf = sp.symbols('T_inf') # renders as T∞
Assumptions tell SymPy the mathematical domain of a symbol, enabling correct simplifications:
T, P, V = sp.symbols('T P V', positive=True) # T, P, V > 0
n = sp.symbols('n', integer=True) # n ∈ ℤ
x = sp.symbols('x', real=True) # x ∈ ℝ (no complex branches)
x = sp.symbols('x', nonnegative=True) # x ≥ 0
Without assumptions, SymPy treats every symbol as a general complex number. With assumptions, simplifications like \(\sqrt{x^2} = x\) (valid only when \(x \geq 0\)) are applied automatically.
Assumption |
Domain |
Common effect |
|---|---|---|
|
\(x > 0\) |
\(\sqrt{x^2} \to x\); \(\ln x\) is real |
|
\(x \geq 0\) |
absorbs absolute values |
|
\(x \in \mathbb{R}\) |
avoids complex branches in trig/log |
|
\(x \in \mathbb{Z}\) |
simplifies modular and floor expressions |
|
\(x < 0\) |
sign-aware simplifications |
symbols vs Symbol: sp.symbols() is the convenience form for one or more variables at once. The lower-level sp.Symbol('x') creates a single symbol and is equivalent to sp.symbols('x'):
x = sp.Symbol('x', positive=True) # same as sp.symbols('x', positive=True)
17.2.2 Building Expressions#
Once you have symbols, you build expressions with ordinary Python operators. SymPy overloads +, -, *, /, ** to produce symbolic objects instead of numbers.
import sympy as sp
sp.init_printing(use_unicode=True)
# ── Single and multiple symbol definitions ────────────────────────────────────
x = sp.symbols('x')
x, y, z = sp.symbols('x y z') # space-separated
a, b, c = sp.symbols('a, b, c') # comma-separated (same result)
print("x:", x)
print("y:", y)
print("z:", z)
print("a:", a)
print("b:", b)
print("c:", c)
x: x
y: y
z: z
a: a
b: b
c: c
# ── Subscripts and Greek letters ──────────────────────────────────────────────
x1, x2 = sp.symbols('x_1 x_2')
alpha, beta = sp.symbols('alpha beta')
T_inf = sp.symbols('T_inf')
print("Subscript symbols :", x1, x2)
print("Greek letters :", alpha, beta)
print("Subscript-inf :", T_inf)
Subscript symbols : x_1 x_2
Greek letters : alpha beta
Subscript-inf : T_inf
# ── Assumptions: effect on simplification ─────────────────────────────────────
x_gen = sp.symbols('x') # no assumption — general complex
x_pos = sp.symbols('x', positive=True) # x > 0
x_real = sp.symbols('x', real=True) # x ∈ ℝ
print("\nsqrt(x²) — no assumption :", sp.sqrt(x_gen**2)) # stays as sqrt(x**2)
print("sqrt(x²) — positive=True :", sp.sqrt(x_pos**2)) # simplifies to x
print("sqrt(x²) — real=True :", sp.sqrt(x_real**2)) # gives Abs(x)
sqrt(x²) — no assumption : sqrt(x**2)
sqrt(x²) — positive=True : x
sqrt(x²) — real=True : Abs(x)
# ── Symbol vs symbols ─────────────────────────────────────────────────────────
T = sp.Symbol('T', positive=True) # single-symbol lower-level form
print("\nT is positive:", T.is_positive)
T is positive: True
Once you have symbols, you build expressions using standard Python operators — SymPy overloads +, -, *, /, ** to return symbolic objects.
x, a, b, c = sp.symbols('x a b c')
# ── Define expressions used below ────────────────────────────────────────────
expr1 = x**2 + 2*x + 1 # x² + 2x + 1
expr3 = a*x**2 + b*x + c # general quadratic
Manipulating expressions:
Function |
What it does |
Example |
|---|---|---|
|
Distributes and multiplies out |
|
|
Factors into irreducibles |
|
|
Applies heuristics to reduce form |
|
|
Substitutes a value for a symbol |
|
|
Substitutes multiple values at once |
|
subs accepts both numeric values and other symbolic expressions — so you can evaluate at a number, substitute \(\pi\), or replace one symbol with another.
# ── Key operations ────────────────────────────────────────────────────────────
print("── expand ──")
print(sp.expand((x + 1)**3)) # multiply out
print("\n── factor ──")
print(sp.factor(x**3 - x**2 - x + 1)) # factor into irreducibles
print("\n── simplify ──")
print(sp.simplify((x**2 - 1) / (x - 1))) # cancel common factor
print("\n── substitute (subs) ──")
print(expr1.subs(x, 3)) # evaluate at x = 3 → integer
print(expr1.subs(x, sp.pi)) # substitute symbolic value
print("\n── substitute multiple values ──")
print(expr3.subs([(a, 1), (b, -3), (c, 2)])) # plug in all at once
── expand ──
x**3 + 3*x**2 + 3*x + 1
── factor ──
(x - 1)**2*(x + 1)
── simplify ──
x + 1
── substitute (subs) ──
16
1 + 2*pi + pi**2
── substitute multiple values ──
x**2 - 3*x + 2
17.2.3 Exact Arithmetic#
SymPy never rounds. Fractions stay as fractions, \(\pi\) stays as \(\pi\), and \(\sqrt{2}\) stays as \(\sqrt{2}\) until you explicitly ask for a decimal.
Exact numeric types:
Syntax |
What it creates |
Example |
|---|---|---|
|
Exact fraction \(p/q\) |
|
|
Exact square root, simplified |
|
|
Symbolic \(\pi\) |
stays as \(\pi\) in expressions |
|
Symbolic \(e\) (Euler’s number) |
stays as \(e\) in expressions |
|
Symbolic \(\infty\) |
used in limits and integrals |
|
Imaginary unit \(i\) |
|
# ── Exact arithmetic ─────────────────────────────────────────────────────────
print("Python float :", 1/3 + 1/6) # 0.5 (rounded)
print("SymPy rational:", sp.Rational(1,3) + sp.Rational(1,6)) # 1/2 (exact)
print("\nsqrt(8) =", sp.sqrt(8)) # 2√2 (exact)
print("pi =", sp.pi) # π
print("\nsp.E =", sp.E) # Euler's number, exact
Python float : 0.5
SymPy rational: 1/2
sqrt(8) = 2*sqrt(2)
pi = pi
sp.E = E
Converting to decimals:
sp.N(expr) # evaluate to 15 significant figures (default)
sp.N(expr, n) # evaluate to n significant figures
expr.evalf() # same as sp.N(expr) — method form
expr.evalf(n) # same as sp.N(expr, n)
Both sp.N() and .evalf() do the same thing — sp.N is the function form, .evalf() is the method form. Neither modifies the original expression; they return a floating-point SymPy number (Float).
The key difference from Python’s built-in float arithmetic is that SymPy tracks exact values symbolically first and only converts to decimal when you ask:
1/3 + 1/6 # Python float: 0.5 (may accumulate rounding error)
sp.Rational(1,3) + sp.Rational(1,6) # SymPy: 1/2 (exact)
print("pi (50 digits):", sp.N(sp.pi, 50)) # numerical to 50 sig figs
print("exp(1) numerical:", sp.N(sp.E, 15)) # 2.71828182845905
pi (50 digits): 3.1415926535897932384626433832795028841971693993751
exp(1) numerical: 2.71828182845905
17.3 Symbolic Calculus#
17.3.1 Differentiation#
sp.diff(expr, var) differentiates expr with respect to var. Pass an integer as a third argument for higher-order derivatives.
Syntax:
sp.diff(expr, x) # first derivative w.r.t. x
sp.diff(expr, x, 2) # second derivative (d²/dx²)
sp.diff(expr, x, n) # n-th derivative
x = sp.symbols('x')
# ── First derivatives ─────────────────────────────────────────────────────────
print("d/dx [x^4] =", sp.diff(x**4, x))
print("d/dx [sin(x)] =", sp.diff(sp.sin(x), x))
print("d/dx [exp(-x^2)] =", sp.diff(sp.exp(-x**2), x))
print("d/dx [ln(x)] =", sp.diff(sp.ln(x), x))
print("d/dx [x^2 * sin(x)] =", sp.diff(x**2 * sp.sin(x), x)) # product rule
# ── Higher-order derivatives ──────────────────────────────────────────────────
print("\nd²/dx² [sin(x)] =", sp.diff(sp.sin(x), x, 2))
print("d³/dx³ [x^5] =", sp.diff(x**5, x, 3))
d/dx [x^4] = 4*x**3
d/dx [sin(x)] = cos(x)
d/dx [exp(-x^2)] = -2*x*exp(-x**2)
d/dx [ln(x)] = 1/x
d/dx [x^2 * sin(x)] = x**2*cos(x) + 2*x*sin(x)
d²/dx² [sin(x)] = -sin(x)
d³/dx³ [x^5] = 60*x**2
For partial derivatives, just pass a different symbol — SymPy treats all other symbols as constants:
sp.diff(expr, T) # ∂expr/∂T (all other symbols held constant)
sp.diff(expr, V) # ∂expr/∂V
For mixed partial derivatives, chain the variables:
sp.diff(expr, x, y) # ∂²expr/∂x∂y
sp.diff(expr, x, 2, y) # ∂³expr/∂x²∂y
The result is always a new symbolic expression that can be simplified, substituted into, or passed to lambdify like any other SymPy expression.
# ── Partial derivatives ───────────────────────────────────────────────────────
T, V = sp.symbols('T V', positive=True)
R, a_vdw, b_vdw = sp.symbols('R a b', positive=True)
# Ideal gas pressure: P = RT/V
P_ideal = R * T / V
print("\n∂P/∂T (ideal gas) =", sp.diff(P_ideal, T))
print("∂P/∂V (ideal gas) =", sp.diff(P_ideal, V))
∂P/∂T (ideal gas) = R/V
∂P/∂V (ideal gas) = -R*T/V**2
17.3.2 Integration#
sp.integrate(expr, var) returns the indefinite integral (no constant of integration is shown but it is implied). For a definite integral, pass a tuple (var, lower, upper).
Syntax:
sp.integrate(expr, x) # indefinite integral w.r.t. x (+ C implied)
sp.integrate(expr, (x, a, b)) # definite integral from a to b
sp.integrate(expr, (x, 0, sp.oo)) # improper integral to ∞
Limits can be numeric, symbolic, or SymPy constants like sp.pi and sp.oo:
sp.integrate(sp.sin(x), (x, 0, sp.pi)) # definite: limits are sp.pi and 0
sp.integrate(sp.exp(-x), (x, 0, sp.oo)) # improper: upper limit is ∞
sp.integrate(f, (x, a, b)) # symbolic limits — result stays symbolic
For multiple integrals, chain the variable tuples:
sp.integrate(expr, (x, 0, 1), (y, 0, 1)) # ∫₀¹ ∫₀¹ expr dy dx
If SymPy cannot find a closed-form antiderivative, it returns the integral unevaluated as an Integral object rather than raising an error. You can then evaluate it numerically with .evalf().
x, T = sp.symbols('x T', positive=True)
# ── Indefinite integrals ──────────────────────────────────────────────────────
print("∫ x^3 dx =", sp.integrate(x**3, x))
print("∫ sin(x) dx =", sp.integrate(sp.sin(x), x))
print("∫ exp(-x) dx =", sp.integrate(sp.exp(-x), x))
print("∫ 1/x dx =", sp.integrate(1/x, x))
# ── Definite integrals ────────────────────────────────────────────────────────
print("\n∫₀^π sin(x) dx =", sp.integrate(sp.sin(x), (x, 0, sp.pi))) # → 2
print("∫₀^∞ exp(-x) dx =", sp.integrate(sp.exp(-x), (x, 0, sp.oo))) # → 1
# ── ChE application: exact ΔH from a Cp polynomial fit ───────────────────────
# Cp(T) ≈ 20.71 + 0.06745 T - 4.498e-5 T² + 1.119e-8 T³ (CO2, J/mol/K)
Cp = 20.71 + 0.06745*T - 4.498e-5*T**2 + 1.119e-8*T**3
dH = sp.integrate(Cp, (T, 400, 900))
print(f"\nΔH = ∫₄₀₀⁹⁰⁰ Cp dT = {float(dH):.2f} J/mol = {float(dH)/1000:.4f} kJ/mol")
∫ x^3 dx = x**4/4
∫ sin(x) dx = -cos(x)
∫ exp(-x) dx = -exp(-x)
∫ 1/x dx = log(x)
∫₀^π sin(x) dx = 2
∫₀^∞ exp(-x) dx =
1
ΔH = ∫₄₀₀⁹⁰⁰ Cp dT = 24069.51 J/mol = 24.0695 kJ/mol
17.3.3 Limits#
The limit of a function \(f(x)\) as \(x\) approaches a point \(a\) is written:
One-sided limits approach \(a\) from one direction only:
The two-sided limit \(L\) exists if and only if both one-sided limits exist and are equal:
sp.limit(expr, var, point) evaluates the limit as var → point. Use sp.oo for \(\infty\) and pass '+' or '-' as a fourth argument for one-sided limits.
Syntax:
sp.limit(expr, x, point) # two-sided limit as x → point
sp.limit(expr, x, 0, '+') # one-sided limit from the right (x → 0⁺)
sp.limit(expr, x, 0, '-') # one-sided limit from the left (x → 0⁻)
sp.limit(expr, x, sp.oo) # limit as x → ∞
sp.limit(expr, x, -sp.oo) # limit as x → -∞
The point argument can be any numeric value, a symbolic expression, or a SymPy constant:
sp.limit(expr, x, 0) # x → 0
sp.limit(expr, x, sp.pi) # x → π
sp.limit(expr, x, sp.oo) # x → ∞
sp.limit(expr, x, a) # x → a (symbolic, result stays in terms of a)
If the two one-sided limits differ, sp.limit returns the right-hand limit by default. To check whether a limit exists, compare the '+' and '-' results explicitly.
x = sp.symbols('x')
# ── Classic limits ────────────────────────────────────────────────────────────
print("lim x→0 sin(x)/x =", sp.limit(sp.sin(x)/x, x, 0)) # → 1
print("lim x→∞ (1 + 1/x)^x =", sp.limit((1 + 1/x)**x, x, sp.oo)) # → e
print("lim x→0+ ln(x) =", sp.limit(sp.ln(x), x, 0, '+')) # → -∞
print("lim x→∞ exp(-x) =", sp.limit(sp.exp(-x), x, sp.oo)) # → 0
# ── ChE application: limiting ideal-gas behavior of van der Waals ─────────────
# P = RT/(V-b) - a/V² as V→∞ should recover P → RT/V (ideal gas)
R_s, T_s, V_s, a_s, b_s = sp.symbols('R T V a b', positive=True)
P_vdw = R_s*T_s/(V_s - b_s) - a_s/V_s**2
P_limit = sp.limit(P_vdw * V_s / (R_s * T_s), V_s, sp.oo)
print("\nlim V→∞ PV/(RT) for van der Waals =", P_limit, " (→ 1 = ideal gas ✓)")
lim x→0 sin(x)/x = 1
lim x→∞ (1 + 1/x)^x = E
lim x→0+ ln(x) = -oo
lim x→∞ exp(-x) = 0
lim V→∞ PV/(RT) for van der Waals = 1 (→ 1 = ideal gas ✓)
17.4 Solving Equations#
17.4.1 Algebraic Equations with sp.solve#
Solving an algebraic equation means finding all values of \(x\) that satisfy:
For a single-variable polynomial of degree \(n\), there are at most \(n\) solutions (roots). The classic example is the quadratic equation:
For a system of equations in multiple unknowns, we seek \((x, y, \ldots)\) satisfying all equations simultaneously:
A unique solution exists when the number of independent equations equals the number of unknowns.
sp.solve(equation, variable) returns all symbolic solutions to equation = 0. Pass an sp.Eq(lhs, rhs) object or just the expression (SymPy assumes it equals zero).
Call |
Meaning |
|---|---|
|
Solve \(f(x) = 0\) for \(x\) |
|
Solve \(\text{lhs} = \text{rhs}\) for \(x\) |
|
Solve a system \(f_1 = 0,\; f_2 = 0\) |
x, y = sp.symbols('x y')
a, b, c = sp.symbols('a b c')
# ── Quadratic formula ─────────────────────────────────────────────────────────
print("Roots of ax² + bx + c = 0:")
roots = sp.solve(a*x**2 + b*x + c, x)
for r in roots:
print(" ", r)
# ── Specific numerical example ────────────────────────────────────────────────
print("\nRoots of x² - 5x + 6 = 0:", sp.solve(x**2 - 5*x + 6, x))
# ── System of equations ───────────────────────────────────────────────────────
# 2x + 3y = 7
# x - y = 1
eq1 = sp.Eq(2*x + 3*y, 7) # 2x+3y = 7
eq2 = sp.Eq(x - y, 1) # x-y = 1
sol = sp.solve([eq1, eq2], [x, y])
print("\nSystem solution:", sol)
# verification
sol1 = 2*sol[x] + 3*sol[y]
sol2 = sol[x] - sol[y]
print("Check eq1: 2x + 3y =", sol1, "→", sol1.doit())
print("Check eq2: x - y =", sol2, "→", sol2.doit())
# ── ChE: solve ideal gas for V ────────────────────────────────────────────────
P, V, R_s, T_s, n = sp.symbols('P V R T n', positive=True)
ideal_gas = sp.Eq(P*V, n*R_s*T_s) # PV = nRT
V_sol = sp.solve(ideal_gas, V)
print("\nIdeal gas V =", V_sol[0])
Roots of ax² + bx + c = 0:
(-b - sqrt(-4*a*c + b**2))/(2*a)
(-b + sqrt(-4*a*c + b**2))/(2*a)
Roots of x² - 5x + 6 = 0: [2, 3]
System solution: {x: 2, y: 1}
Check eq1: 2x + 3y = 7 → 7
Check eq2: x - y = 1 → 1
Ideal gas V = R*T*n/P
17.4.2 Ordinary Differential Equations with sp.dsolve –> Let’s revisit this later!#
sp.dsolve(ode, func) solves ordinary differential equations symbolically. You define the unknown function with sp.Function and write the ODE using func(x).diff(x).
This is useful for:
First-order decay / growth models (radioactive decay, first-order reactions)
Finding the analytical steady-state of a CSTR or batch reactor
Verifying numerical ODE solutions against exact answers
t, k = sp.symbols('t k', positive=True)
C = sp.Function('C') # C is the unknown function of t
# ── First-order reaction: dC/dt = -k*C ───────────────────────────────────────
ode1 = sp.Eq(C(t).diff(t), -k * C(t))
sol1 = sp.dsolve(ode1, C(t))
print("dC/dt = -kC → ", sol1)
# Apply initial condition C(0) = C0
C0 = sp.Symbol('C0', positive=True)
C1_const = sp.solve(sol1.rhs.subs(t, 0) - C0, sp.Symbol('C1'))[0]
C_exact = sol1.rhs.subs(sp.Symbol('C1'), C1_const)
print("With C(0)=C0 → C(t) =", C_exact)
# ── Second-order ODE: d²y/dx² + y = 0 (harmonic oscillator) ─────────────────
x = sp.symbols('x')
y = sp.Function('y')
ode2 = sp.Eq(y(x).diff(x, 2) + y(x), 0)
sol2 = sp.dsolve(ode2, y(x))
print("\nd²y/dx² + y = 0 → ", sol2)
# ── Energy balance ODE: dT/dt = (Q - UA(T-Tc)) / (m*Cp) ──────────────────────
# Simplified: dT/dt = alpha - beta*T (first-order linear)
T_f = sp.Function('T')
alpha, beta = sp.symbols('alpha beta', positive=True)
ode3 = sp.Eq(T_f(t).diff(t), alpha - beta*T_f(t))
sol3 = sp.dsolve(ode3, T_f(t))
print("\ndT/dt = α - βT → ", sol3)
print(" (steady state T_ss = α/β as t→∞ ✓)")
dC/dt = -kC → Eq(C(t), C1*exp(-k*t))
With C(0)=C0 → C(t) = C0*exp(-k*t)
d²y/dx² + y = 0 → Eq(y(x), C1*sin(x) + C2*cos(x))
dT/dt = α - βT → Eq(T(t), C1*exp(-beta*t) + alpha/beta)
(steady state T_ss = α/β as t→∞ ✓)
17.5 ChE Application: van der Waals Equation of State#
The van der Waals equation corrects the ideal gas law for molecular volume (\(b\)) and intermolecular attractions (\(a\)):
This is a cubic equation in \(V\) — it has up to three real roots, corresponding to liquid, two-phase, and vapor states. SymPy can:
Rearrange it into cubic form
Solve analytically for \(V\)
Compute \(\left(\frac{\partial P}{\partial V}\right)_T\) for spinodal and critical-point analysis
Find the critical point where \(\frac{\partial P}{\partial V} = \frac{\partial^2 P}{\partial V^2} = 0\)
P, V, T_s, R_s, a_s, b_s = sp.symbols('P V T R a b', positive=True)
# ── van der Waals pressure ────────────────────────────────────────────────────
P_vdw = R_s*T_s / (V - b_s) - a_s / V**2
print("P(V) =", P_vdw)
# ── Solve analytically for V (cubic roots) ───────────────────────────────────
# van der Waals rearranges to: P*V³ - (Pb + RT)*V² + a*V - ab = 0
V_solutions = sp.solve(P_vdw - P, V) # R*T / (V - b) - a / V**2 - P = 0
print("\nAnalytic roots V(P,T):")
for k, sol in enumerate(V_solutions):
print(f" V_{k+1} =", sol)
# ── dP/dV at constant T (spinodal condition: dP/dV = 0) ─────────────────────
dPdV = sp.diff(P_vdw, V)
print("\ndP/dV =", sp.simplify(dPdV))
# ── d²P/dV² ──────────────────────────────────────────────────────────────────
d2PdV2 = sp.diff(P_vdw, V, 2)
print("\nd²P/dV² =", sp.simplify(d2PdV2))
# ── Critical point: solve dP/dV = 0 and d²P/dV² = 0 simultaneously ──────────
V_c, T_c = sp.symbols('V_c T_c', positive=True)
crit_eq1 = dPdV.subs([(V, V_c), (T_s, T_c)])
crit_eq2 = d2PdV2.subs([(V, V_c), (T_s, T_c)])
crit_sol = sp.solve([crit_eq1, crit_eq2], [V_c, T_c])
if isinstance(crit_sol, list):
crit_sol = crit_sol[0]
Vc_val = crit_sol[0]
Tc_val = crit_sol[1]
else:
Vc_val = crit_sol[V_c]
Tc_val = crit_sol[T_c]
print("\nCritical point:")
print(" V_c =", Vc_val)
print(" T_c =", Tc_val)
P_c = P_vdw.subs([(V, Vc_val), (T_s, Tc_val)])
print(" P_c =", sp.simplify(P_c))
P(V) = R*T/(V - b) - a/V**2
Analytic roots V(P,T):
V_1 = -(-3*a/P + (-P*b - R*T)**2/P**2)/(3*(sqrt(-4*(-3*a/P + (-P*b - R*T)**2/P**2)**3 + (-27*a*b/P - 9*a*(-P*b - R*T)/P**2 + 2*(-P*b - R*T)**3/P**3)**2)/2 - 27*a*b/(2*P) - 9*a*(-P*b - R*T)/(2*P**2) + (-P*b - R*T)**3/P**3)**(1/3)) - (sqrt(-4*(-3*a/P + (-P*b - R*T)**2/P**2)**3 + (-27*a*b/P - 9*a*(-P*b - R*T)/P**2 + 2*(-P*b - R*T)**3/P**3)**2)/2 - 27*a*b/(2*P) - 9*a*(-P*b - R*T)/(2*P**2) + (-P*b - R*T)**3/P**3)**(1/3)/3 - (-P*b - R*T)/(3*P)
V_2 = -(-3*a/P + (-P*b - R*T)**2/P**2)/(3*(-1/2 - sqrt(3)*I/2)*(sqrt(-4*(-3*a/P + (-P*b - R*T)**2/P**2)**3 + (-27*a*b/P - 9*a*(-P*b - R*T)/P**2 + 2*(-P*b - R*T)**3/P**3)**2)/2 - 27*a*b/(2*P) - 9*a*(-P*b - R*T)/(2*P**2) + (-P*b - R*T)**3/P**3)**(1/3)) - (-1/2 - sqrt(3)*I/2)*(sqrt(-4*(-3*a/P + (-P*b - R*T)**2/P**2)**3 + (-27*a*b/P - 9*a*(-P*b - R*T)/P**2 + 2*(-P*b - R*T)**3/P**3)**2)/2 - 27*a*b/(2*P) - 9*a*(-P*b - R*T)/(2*P**2) + (-P*b - R*T)**3/P**3)**(1/3)/3 - (-P*b - R*T)/(3*P)
V_3 = -(-3*a/P + (-P*b - R*T)**2/P**2)/(3*(-1/2 + sqrt(3)*I/2)*(sqrt(-4*(-3*a/P + (-P*b - R*T)**2/P**2)**3 + (-27*a*b/P - 9*a*(-P*b - R*T)/P**2 + 2*(-P*b - R*T)**3/P**3)**2)/2 - 27*a*b/(2*P) - 9*a*(-P*b - R*T)/(2*P**2) + (-P*b - R*T)**3/P**3)**(1/3)) - (-1/2 + sqrt(3)*I/2)*(sqrt(-4*(-3*a/P + (-P*b - R*T)**2/P**2)**3 + (-27*a*b/P - 9*a*(-P*b - R*T)/P**2 + 2*(-P*b - R*T)**3/P**3)**2)/2 - 27*a*b/(2*P) - 9*a*(-P*b - R*T)/(2*P**2) + (-P*b - R*T)**3/P**3)**(1/3)/3 - (-P*b - R*T)/(3*P)
dP/dV = -R*T/(V - b)**2 + 2*a/V**3
d²P/dV² = 2*R*T/(V - b)**3 - 6*a/V**4
Critical point:
V_c = 3*b
T_c = 8*a/(27*R*b)
P_c = a/(27*b**2)
17.5.1 Plotting the van der Waals P–V Isotherm#
Using the symbolic expression and lambdify, we can plot isotherms for CO\(_2\) (\(a = 0.3658\) J·m³/mol², \(b = 4.286\times10^{-5}\) m³/mol) and visualize the phase transition region.
import numpy as np
import matplotlib.pyplot as plt
# CO2 van der Waals constants
a_co2 = 0.3658 # J·m³/mol²
b_co2 = 4.286e-5 # m³/mol
R_val = 8.314 # J/(mol·K)
T_c_co2 = 8 * a_co2 / (27 * R_val * b_co2) # ≈ 304 K (critical temp)
# Convert symbolic P_vdw → fast numerical function
P_num = sp.lambdify((V, T_s, R_s, a_s, b_s), P_vdw, 'numpy')
V_arr = np.linspace(1.1*b_co2, 6e-4, 2000) # m³/mol
fig, ax = plt.subplots(figsize=(9, 5))
for T_val, color in zip([250, 280, T_c_co2, 330, 380],
['tab:blue', 'tab:cyan', 'tab:red', 'tab:orange', 'tab:gray']):
P_arr = P_num(V_arr, T_val, R_val, a_co2, b_co2) / 1e6 # Pa → MPa
label = f'T = {T_val:.0f} K' + (' (critical)' if abs(T_val - T_c_co2) < 1 else '')
lw = 2.5 if abs(T_val - T_c_co2) < 1 else 1.8
ax.plot(V_arr * 1e6, P_arr, color=color, linewidth=lw, label=label) # V in cm³/mol
ax.axhline(0, color='k', linewidth=0.8, linestyle='--')
ax.set_xlim(0, 600); ax.set_ylim(-2, 15)
ax.set_xlabel('Molar volume $V$ (cm³/mol)')
ax.set_ylabel('Pressure $P$ (MPa)')
ax.set_title('van der Waals isotherms for CO$_2$\n(negative pressure region is unphysical — Maxwell construction needed)')
ax.legend(fontsize=9)
plt.tight_layout()
plt.show()
print(f"CO₂ critical temperature: T_c = {T_c_co2:.1f} K ({T_c_co2-273.15:.1f} °C)")
print(f"CO₂ critical pressure: P_c = {a_co2/(27*b_co2**2)/1e6:.2f} MPa")
CO₂ critical temperature: T_c = 304.2 K (31.0 °C)
CO₂ critical pressure: P_c = 7.38 MPa
17.6 lambdify: Bridging SymPy and NumPy#
The key workflow: derive symbolically → convert to a fast numerical function with lambdify → evaluate or plot.
SymPy expressions are symbolic objects — they cannot be evaluated on NumPy arrays directly. sp.lambdify converts a symbolic expression into a regular Python function backed by NumPy (or any other numerical library), giving you the best of both worlds: symbolic derivation + numerical speed.
f_num = sp.lambdify(variables, expression, 'numpy')
Argument |
Description |
|---|---|
|
Symbol or tuple of symbols — become function arguments |
|
Any SymPy expression |
|
Backend: |
Typical workflow:
Define symbols and derive the expression symbolically (e.g., take a derivative, integrate, simplify)
Call
lambdifyto get a fast numerical functionEvaluate on arrays, plot, or pass to a solver
Syntax examples — single variable, multiple variables, and scalar evaluation:
# Single variable
f_num = sp.lambdify(x, expr, 'numpy') # f_num(x_val)
# Multiple variables — pass a tuple
g_num = sp.lambdify((x, y), expr, 'numpy') # g_num(x_val, y_val)
# Evaluate at a scalar
f_num(2.0) # returns a float
# Evaluate on a NumPy array (vectorized automatically)
x_arr = np.linspace(0, 10, 500)
f_num(x_arr) # returns an array
The backend argument controls which library is used under the hood:
Backend |
When to use |
|---|---|
|
Default — arrays, plotting |
|
Scalar-only (no arrays) |
|
When the expression uses special functions (e.g. |
import numpy as np
import sympy as sp
x, y = sp.symbols('x y')
# ── Single-variable lambdify ──────────────────────────────────────────────────
expr = x**2 + sp.sin(x)
f_num = sp.lambdify(x, expr, 'numpy')
def f_numpy(x):
return x**2 + np.sin(x)
print("f(x) =", expr)
print("f(1.0) =", f_num(1.0)) # scalar
print("f([0,1,2]) =", f_num(np.array([0.0, 1.0, 2.0]))) # array
print("numpy f_numpy([0,1,2]) =", f_numpy(np.array([0.0, 1.0, 2.0])))
# ── Multi-variable lambdify ───────────────────────────────────────────────────
expr2 = x**2 + y**2
g_num = sp.lambdify((x, y), expr2, 'numpy')
print("\ng(x,y) =", expr2)
print("g(3, 4) =", g_num(3, 4)) # → 25
# ── Lambdify a derivative ─────────────────────────────────────────────────────
df_sym = sp.diff(expr, x)
df_num = sp.lambdify(x, df_sym, 'numpy')
print("\nf'(x) =", df_sym)
print("f'(0) =", df_num(0.0)) # → 1.0 (0 + cos(0))
print("f'(π) =", df_num(float(sp.pi))) # → 2π - 1
f(x) = x**2 + sin(x)
f(1.0) = 1.8414709848078965
f([0,1,2]) = [0. 1.84147098 4.90929743]
numpy f_numpy([0,1,2]) = [0. 1.84147098 4.90929743]
g(x,y) = x**2 + y**2
g(3, 4) = 25
f'(x) = 2*x + cos(x)
f'(0) = 1.0
f'(π) = 5.283185307179586
import numpy as np
import matplotlib.pyplot as plt
import sympy as sp
x = sp.symbols('x')
# ── Step 1: derive symbolically ───────────────────────────────────────────────
f_sym = sp.sin(x) * sp.exp(-x / 3)
df_sym = sp.diff(f_sym, x)
d2f_sym = sp.diff(f_sym, x, 2)
print("f(x) =", f_sym)
print("f'(x) =", df_sym)
print("f''(x) =", d2f_sym)
# ── Step 2: convert to numerical functions ────────────────────────────────────
f = sp.lambdify(x, f_sym, 'numpy')
df = sp.lambdify(x, df_sym, 'numpy')
d2f = sp.lambdify(x, d2f_sym, 'numpy')
# ── Step 3: evaluate and plot ─────────────────────────────────────────────────
x_arr = np.linspace(0, 4*np.pi, 400)
fig, ax = plt.subplots(figsize=(10, 4))
ax.plot(x_arr, f(x_arr), 'k-', linewidth=2, label=r'$f(x) = \sin(x)\,e^{-x/3}$')
ax.plot(x_arr, df(x_arr), 'b--', linewidth=1.8, label=r"$f'(x)$")
ax.plot(x_arr, d2f(x_arr), 'r:', linewidth=1.8, label=r"$f''(x)$")
ax.axhline(0, color='gray', linewidth=0.8)
ax.set_xlabel('x'); ax.set_ylabel('y')
ax.set_title('Symbolic differentiation → lambdify → numerical plot')
ax.legend()
plt.tight_layout()
plt.show()
# ── Find zeros of f'(x) numerically using the lambdified derivative ───────────
from scipy.optimize import brentq
zeros = []
for i in range(len(x_arr) - 1):
if df(x_arr[i]) * df(x_arr[i+1]) < 0: # sign change → root
root = brentq(df, x_arr[i], x_arr[i+1])
zeros.append(root)
print("\nCritical points of f(x) on [0, 4π]:")
for z in zeros:
print(f" x = {z:.4f}, f(x) = {f(z):.4f}, f'(x) ≈ {df(z):.2e}")
f(x) = exp(-x/3)*sin(x)
f'(x) = -exp(-x/3)*sin(x)/3 + exp(-x/3)*cos(x)
f''(x) = -2*(4*sin(x) + 3*cos(x))*exp(-x/3)/9
Critical points of f(x) on [0, 4π]:
x = 1.2490, f(x) = 0.6256, f'(x) ≈ -9.32e-14
x = 4.3906, f(x) = -0.2195, f'(x) ≈ -2.84e-14
x = 7.5322, f(x) = 0.0770, f'(x) ≈ 4.75e-16
x = 10.6738, f(x) = -0.0270, f'(x) ≈ 2.03e-16
17.7 Summary#
Concept |
SymPy tool |
Example |
|---|---|---|
Define symbols |
|
Variables with assumptions |
Exact arithmetic |
|
\(\frac{1}{3} + \frac{1}{6} = \frac{1}{2}\) exactly |
Expand |
|
\((x+1)^3 \to x^3 + 3x^2 + 3x + 1\) |
Factor |
|
\(x^2 - 1 \to (x-1)(x+1)\) |
Simplify |
|
Cancel, trig identities, etc. |
Substitute |
|
Plug in a value or another symbol |
Differentiate |
|
\(n\)-th derivative w.r.t. \(x\) |
Integrate |
|
Indefinite; |
Limit |
|
\(\lim_{x\to 0}\frac{\sin x}{x} = 1\) |
Solve algebraic |
|
Roots, quadratic formula, systems |
Solve ODE |
|
Analytical solution with constant \(C_1\) |
Numerical eval |
|
\(\pi\) to 50 digits |
Vectorize |
|
SymPy → NumPy-compatible function |
Golden rule: Use SymPy to derive — exact formulas, derivatives, integrals, and solutions. Use NumPy/SciPy to compute — fast array operations, plotting, and numerical solvers. Connect the two with lambdify.
ChE use cases covered:
\(\partial P / \partial T\) and \(\partial P / \partial V\) from the ideal gas and van der Waals EOS
Exact \(\Delta H = \int C_p\, dT\) from a polynomial fit
Critical point \((V_c, T_c, P_c)\) of van der Waals gas from \(\nabla P = 0\)
First-order reaction \(dC/dt = -kC\) solved analytically
Reactor energy balance ODE solved to find steady-state temperature
